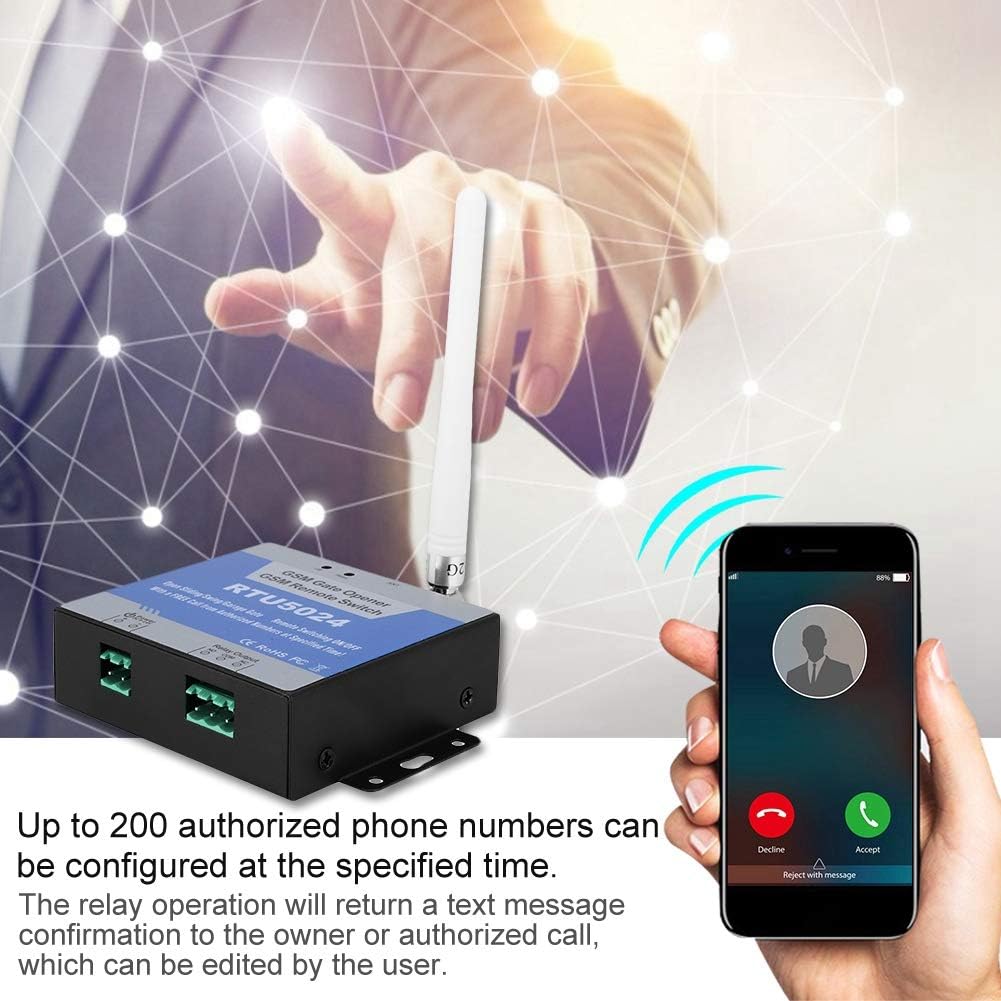

Remote On/Off Switch GSM Gate Opener Access Controller W154
Remote On/Off Switch GSM Gate Opener Access Controller W154
✅Security - Automatically identify the caller ID and ignore unknown callers, so it's very safe, you don't have to worry. The relay action wants to return a text message confirmation to the owner or authorized call, which can be edited by the user.
✅No call charges - The GSM relay switch picks up the call from authorized number then performs the turn ON / OFF on the first 'ring'. Support 850 / 900 / 1800 / 1900MHz quad bands, which can be operated from anywhere without distance restrictions.
✅Personalization - Users can be added or removed via SMS commands without having to provide remote controls or buttons for different users. Up to 200 authorized phone numbers can be configured at a given time.
✅Timing function - You can set the time of opening and closing in the according to your requirements and use this relay remote control switch to make your door smart.
✅Multiple Applications - Metal case, compact design. Suitable for doors, garages, car parks, control rooms, warehouses, unsupervised machine rooms of the group type, such as telecom operators, construction site, control gates remote switching devices.
Features:

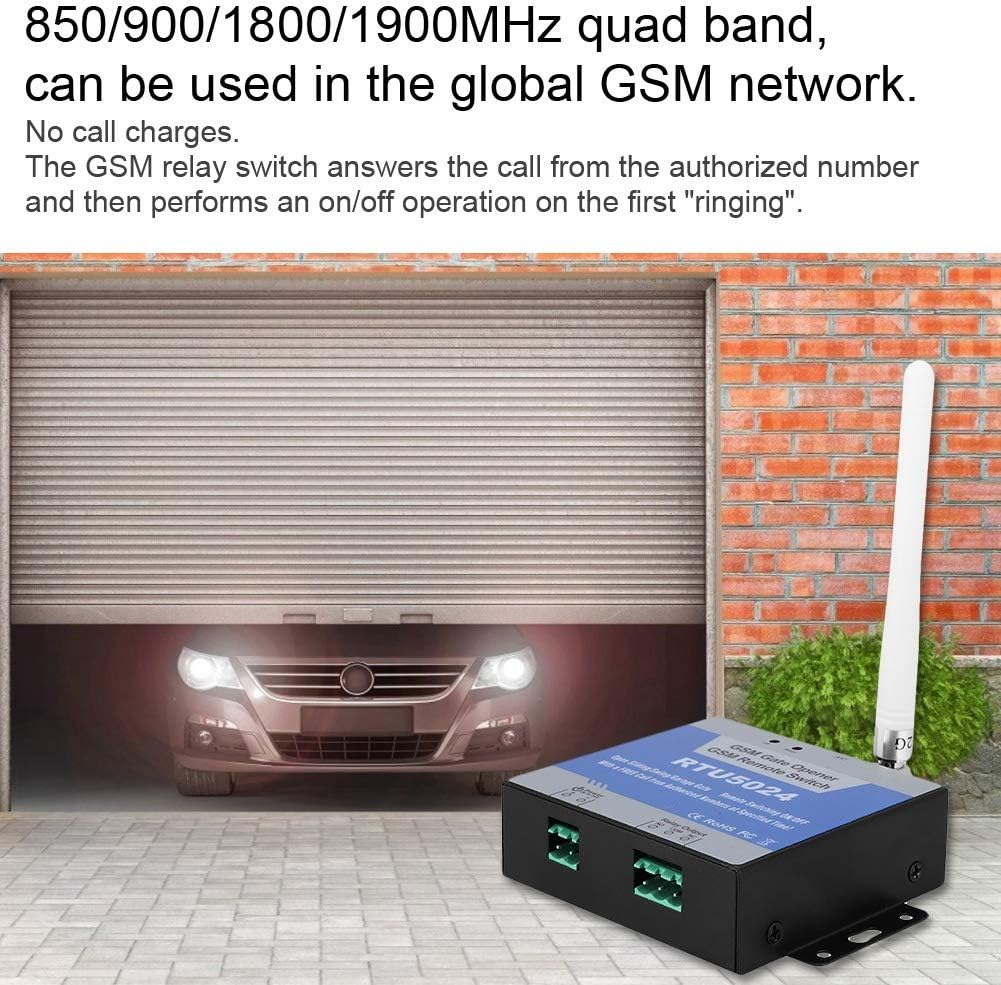

1. 850/900/1800/1900MHz quad band, can be used in the global GSM network.
2. No call charges. The GSM relay switch answers the call from the authorized number and then performs an on/off operation on the first 'ringing'.

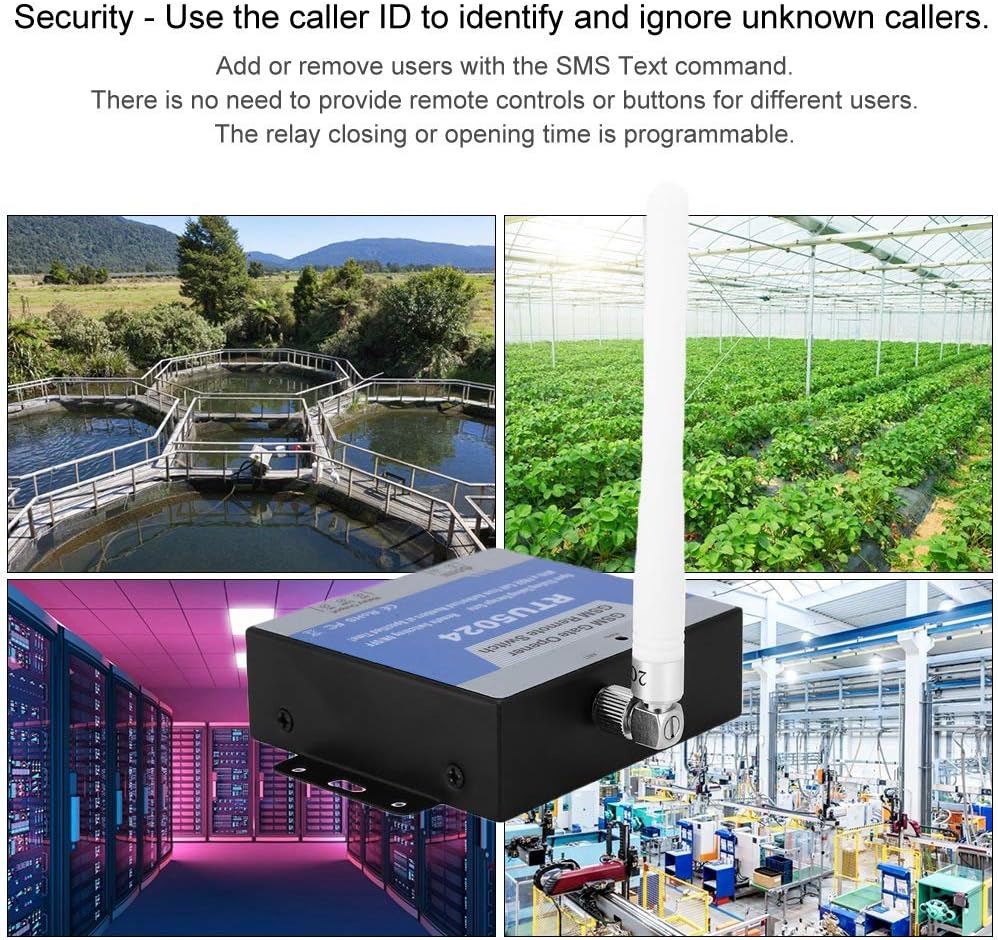

3. Security - Use the caller ID to identify and ignore unknown callers.
4. Add or remove users with the SMS Text command.
5. There is no need to provide remote controls or buttons for different users.
6. Up to 200 authorized phone numbers can be configured at the specified time.
7. The relay operation will return a text message confirmation to the owner or authorized call, which can be edited by the user.
8. The relay closing or opening time is programmable.
9. With metal casing, IP30 protection level. The metal casing and system are safely isolated, especially suitable for industrial control applications.
10. Small size and support for wall mounting.
11. Multiple applications.
Specification:
Model: RTU5024
GSM frequency: 850/900/1800 / 1900MHz
Digital output: NC / NO dry contact, 3A / 240VAC
DC power supply: 9-15V DC / 2A
Power consumption: 12V, maximum input: 50mA / average 25mA
SIM card: standard SIM card
Antenna: 50Ω SMA antenna interface
Temperature range: -20~ + 60°C
Humidity range: relative humidity 90%
Package Size: about 13*9.5*3cm/5.12*3.74*1.18in

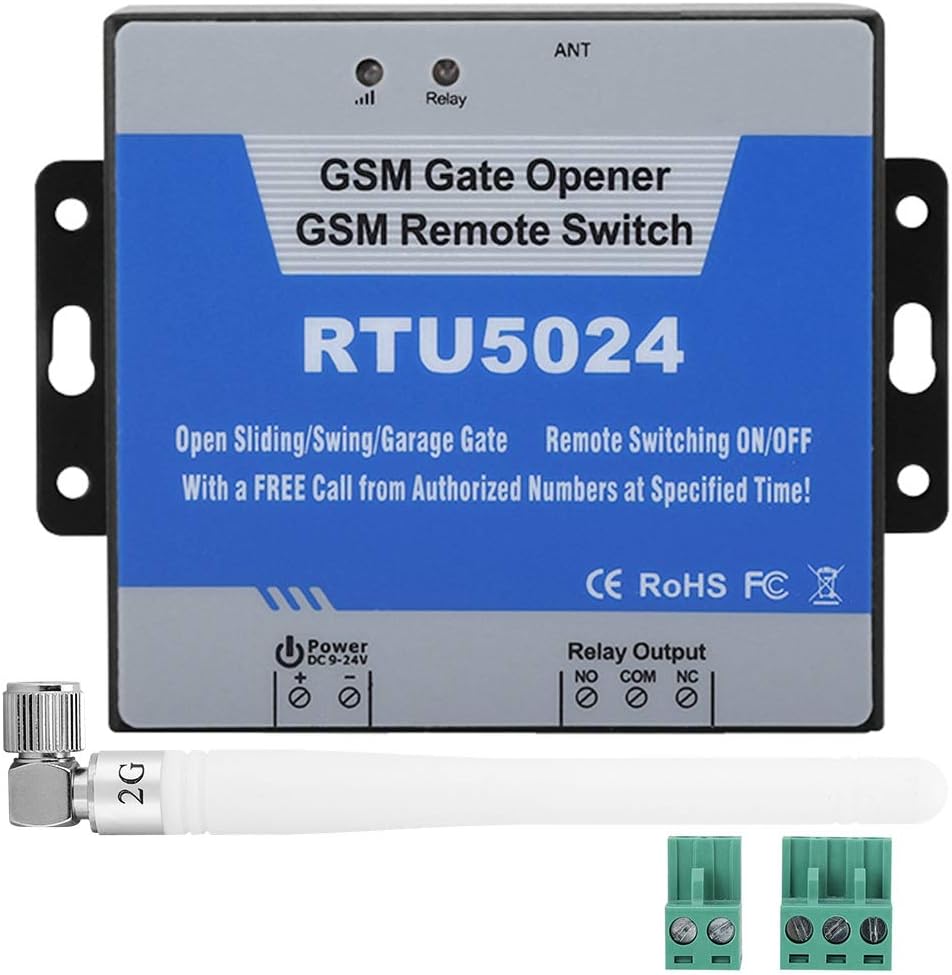

Package List:
1 * GSM Mobile Phone Access Controller
1 * Antenna
2 * Terminal
1 * English Manual
