32 inch Infrared Touch Frame Q65237

COMPANY PRODUCTION

Guangzhou Chengying Technology Co.,Ltd is a professional manufacturer and supplier of touch screen overlay. We can provide 15 inches to 800 inches infrared touch frame, include 2, 4, 6, 10, 12, 16, 32, 40 touch points series product.

SPECIFICATION

Standard Size: 32 inch

Ratio: 16:9

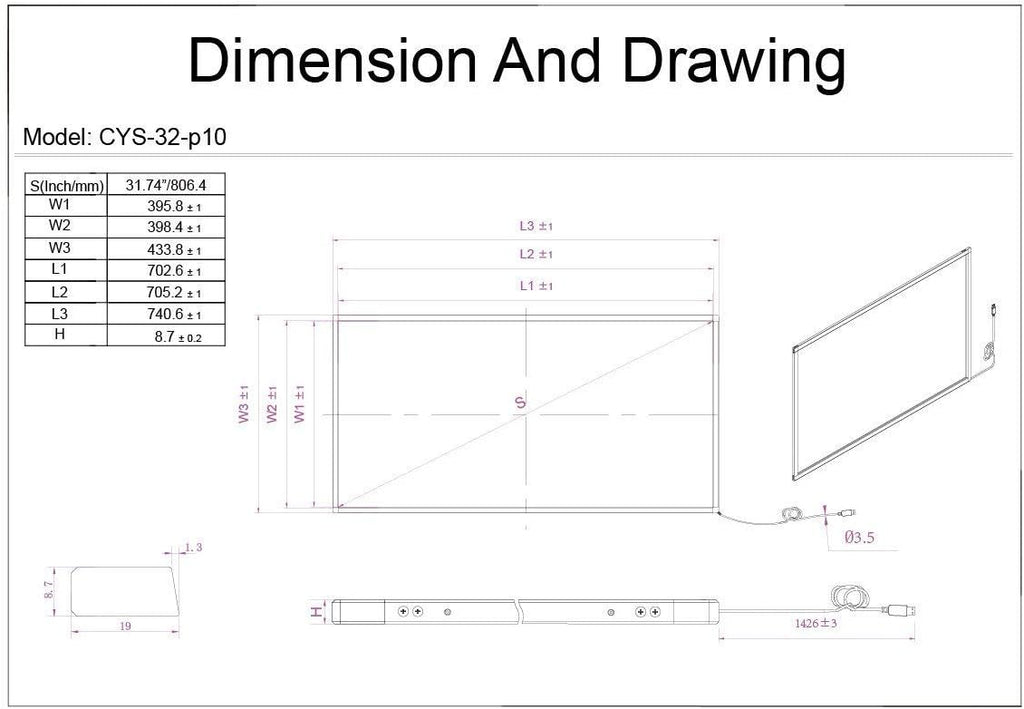

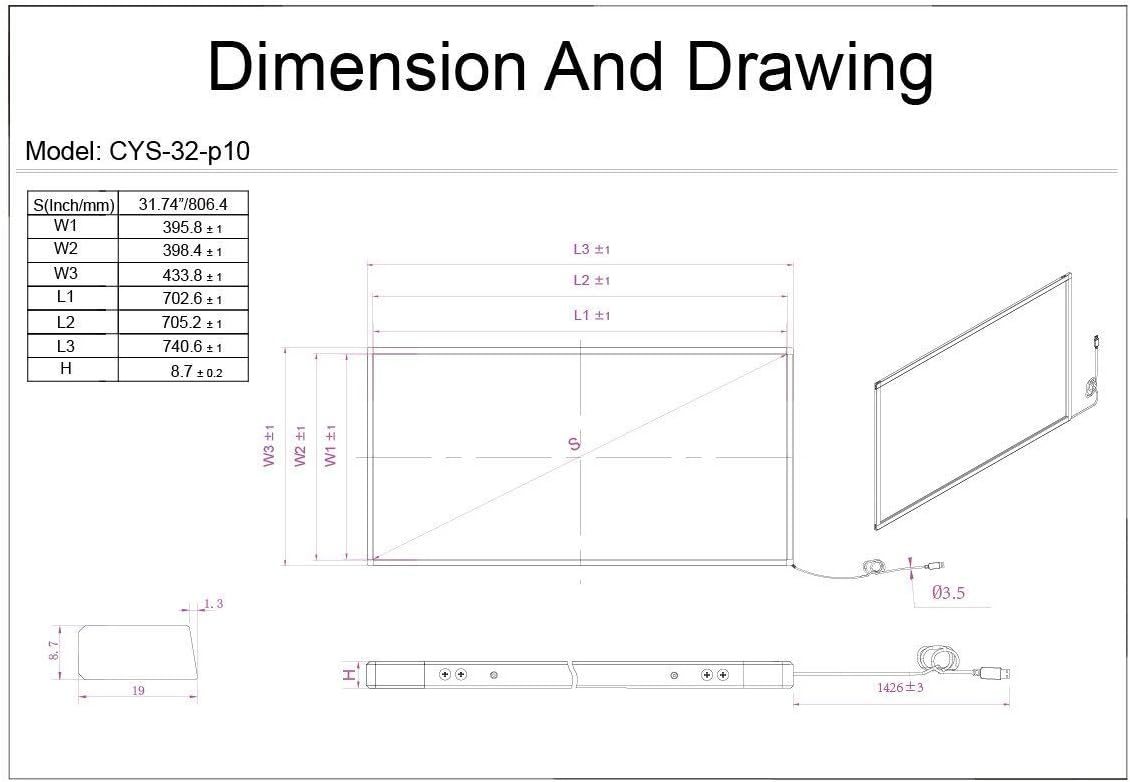

Dimension: 19mm width, 8.7 thickness (frame only, without glass, without screen)

Number of Touch Points: 10

Minimum Touch Object: 5mm

Touch Activation Force: No minimum touch pressure required

Touch Durability: Unlimited

DurabilityResolution: 32768*32768

Linearity Deviation: ±1mm

Fault Tolerance: Workable even 75% sensors are damaged

Frames per Second: Up to 450 fps

Typical Response Time: 3-10ms

Light Transmission: 100% without glass

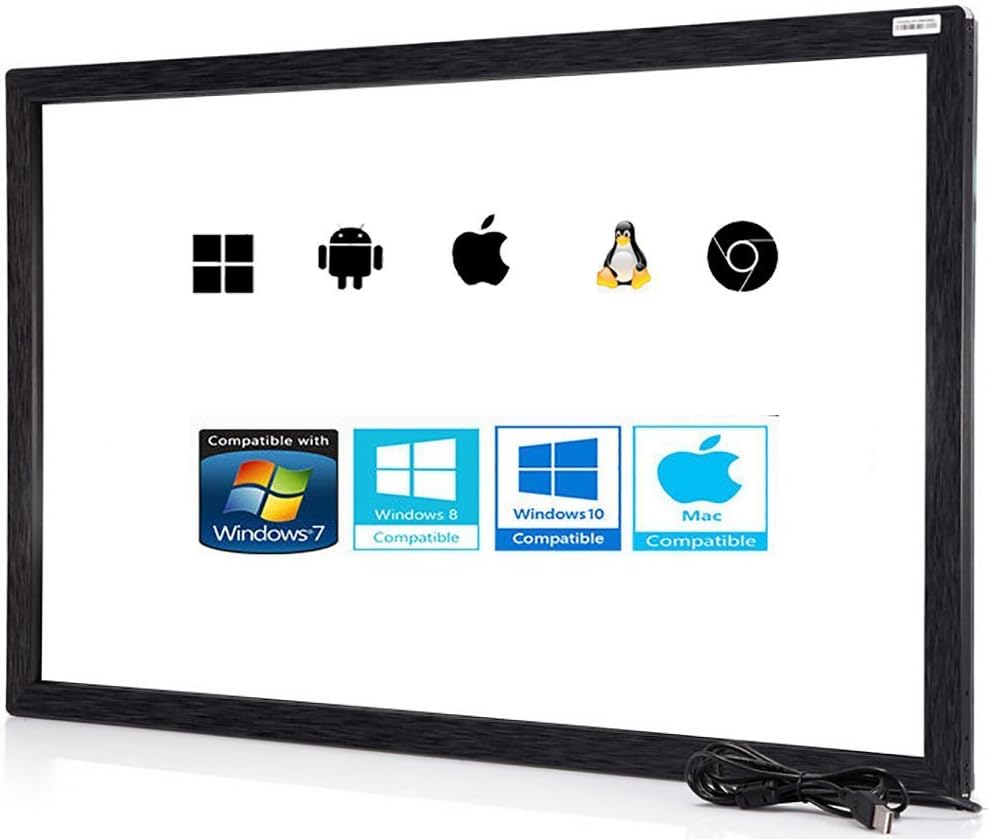

Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android.

Need to install the HID driver in Mac OS.

(Does not support Smart TV Android system, Raspberry Pi)

Protocols: HID,TUIO,Flash

Re-development Provide: free SDK, support C/C++, C#, Java etc.

ElECTRICAL

Power Supply: Single USB Connection

Low Power Consumption: Operating ≤2W, Stand By ≤ 250mW

ESD: Contact Discharge 8kV,Air Discharge 15kV,15kV on USB connector pins

ENVIRONMENT

Operating Temperature: -20°C~70°C

Storage Temperature: -40°C~85°C

Operating Humidity: 10%~90%RH(Non-condensing)

Storage Humidity: 10%~90%RH

Certification: FCC,CE,ROHS

Warranty: 1 year
